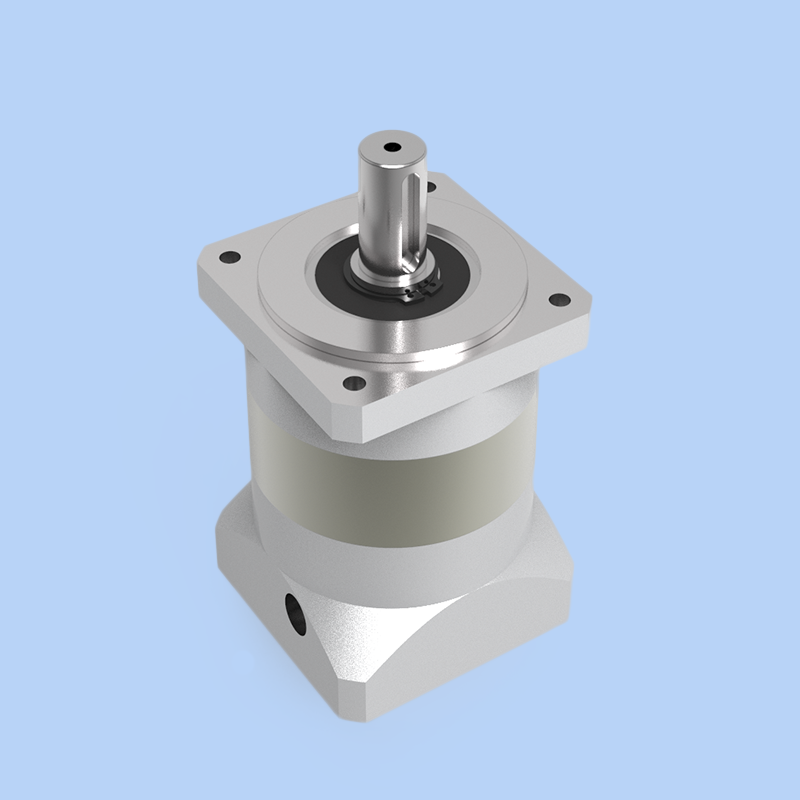

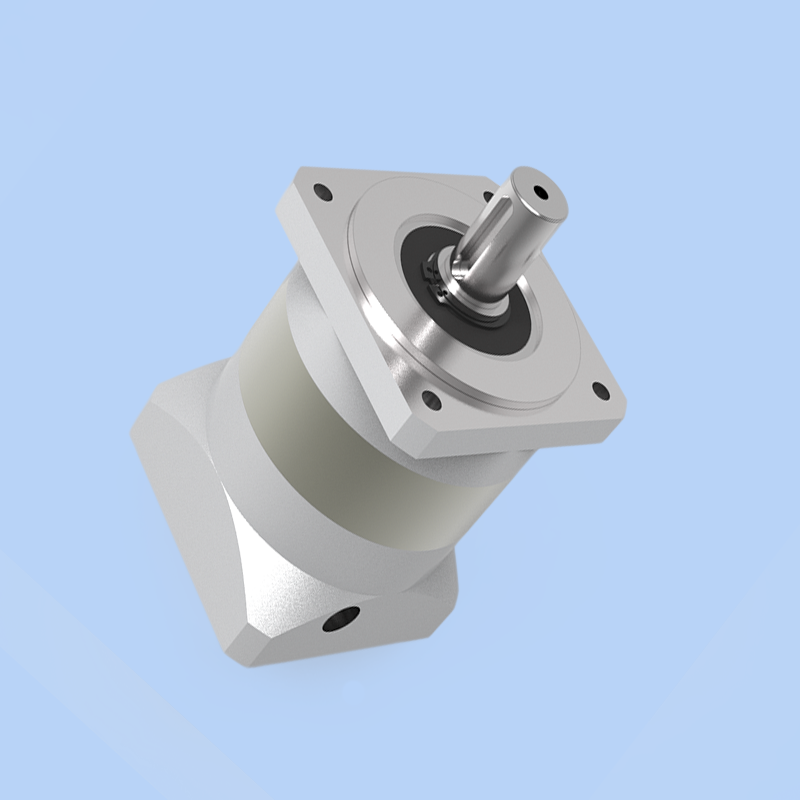

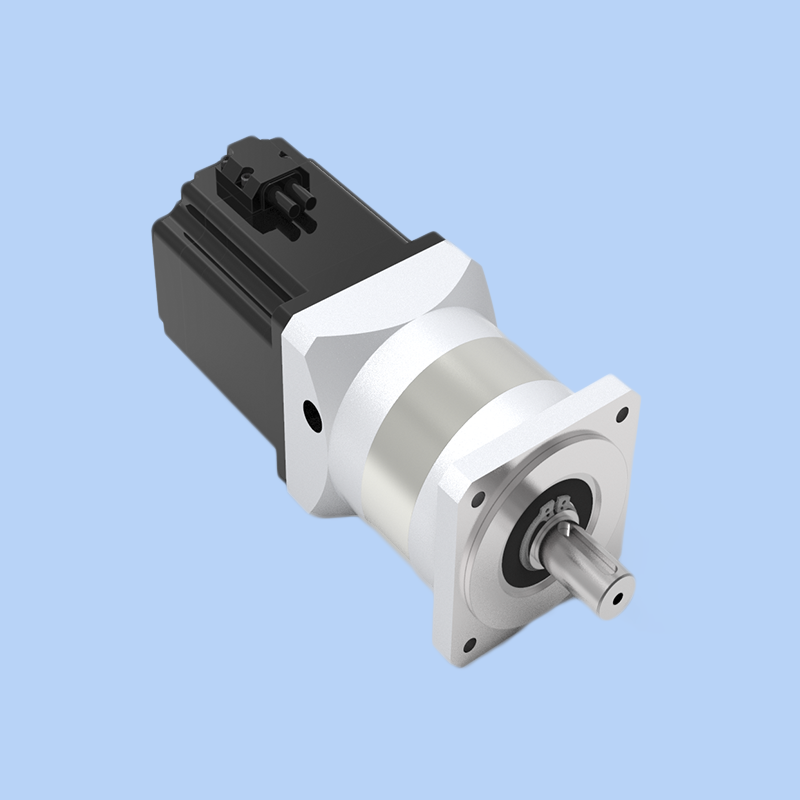

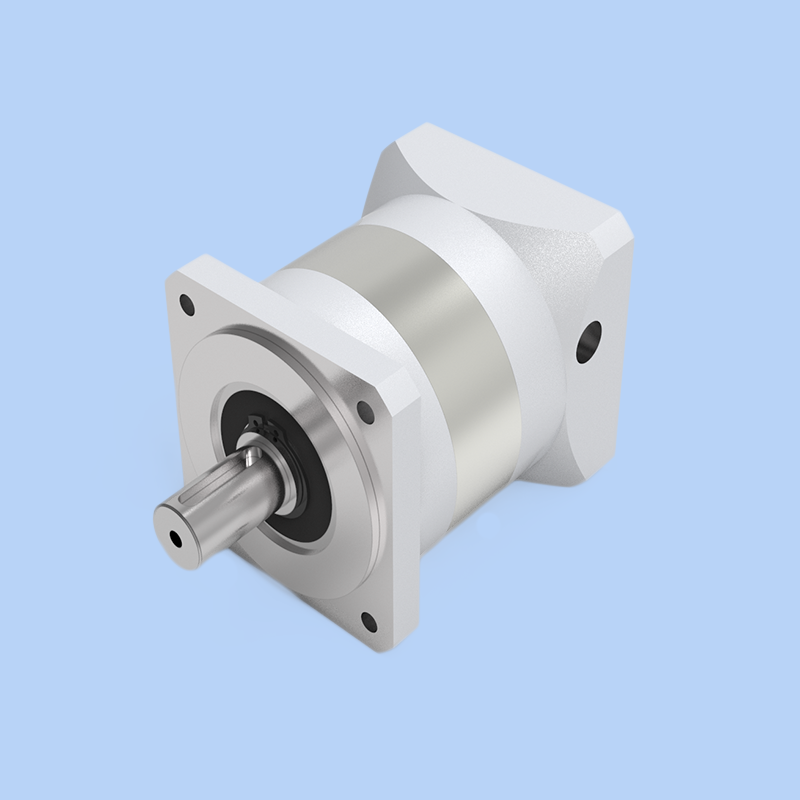

90 Diameter of Flange Precision Planetary Gearbox and 90 degree Gearbox
Competitive & Advantages of Planetary Gearbox
- ODM & OEM Service
- Noise Test/ Life Test/ Water-proof Test/ High- Low Temperature Test/ Air-tight Test/ Salt Spray Test
- Low Noise, Low Backlash, High Efficiency
- 20000 Hours Working Life
- 100% Quality Checked with Quality Guaranteed
| Applicable Industry | Automation Industry | Manufacturer Type | OEM/ ODM |
| Gearing Arrangement | Planetary | Lubricating oil Type | Synthetic Grease |
| Output Torque(N.m) | ≤90 | Output Speed (rpm) | 30-100rpm |
| Input Speed (rpm) | ≤3000 | Ratio | 4,5,7,10 4,5,7,10/16,20,25,28,35,40,50,70 |
| 4Place of Origin | China | Brand | HPS |
| Main Material | 45# Steel & CrMnTi | Material of shaft | As required |
| Certifications | ISO-9001 / CE | Model | SPLF90 |
| Packing Type | Standard Export Package | Warranty | 1 Year |
Planetary Gearbox Specifications
| Model | SPLF90 |
| Drive series | 2 |
| Ratio | 4,5,7,10 16,20,25,28,35,40,50,70 |
| Rated output torque(N.m) | ≤90 |
| Max torque(N.m) | 135 |
| Noise (db) | ≤55 |
| Working temperature(℃) | -40~90 |
| IP Level | 54 |
| Full Load Efficiency | 90% |
Planetary Gearbox Classification & Application Fields
Successful Field
Exhibition
HPS as a newcomer of automation industry, it had attended sveral exhbitions during 3 years. The photos show that HPS sales team attended ShangHai PV exhibition.
Packaging
Certifications
We have obtained many certificates in terms of quality and invention patents, and only a part of them are shown here.
These certificates are sufficient to prove that the quality of our products is reliable, and we look forward to cooperating with you.
FAQ
1. Are you manufacturer?
Yes, we are the manufacturer in China.
2. What information shall we give before placing a purchase order?
A) Motor specifications, ratio, output speed, output rated torque, backlash and noise requirements, connection type.
B) Purchase quantity
C) Other particular requirements
3. What applications are your gearboxes being used?
Our gearboxes widely used in the applications of solar energy, AGV, robot arms, textile, food processing, chemical industry, automation production line, environment protection, logistics and etc.
4. Would you customize for special requirements?
Yes, we have design and development team with over 10 years experience in this field.
5. Can I come to your company to visit?
Yes, you can come to our company to visit at anytime
